DR D04

  • Product name : DR D04
  • Product Categories : Automatic car wash machine
  • Product Description: DR D04.pdf
Details
DR WASH Series

DR D04

Touchless Car Wash Machine

"Higher Pressure. Deeper Clean."

150-bar high-pressure brushless car wash system for heavy-duty cleaning

DR D04

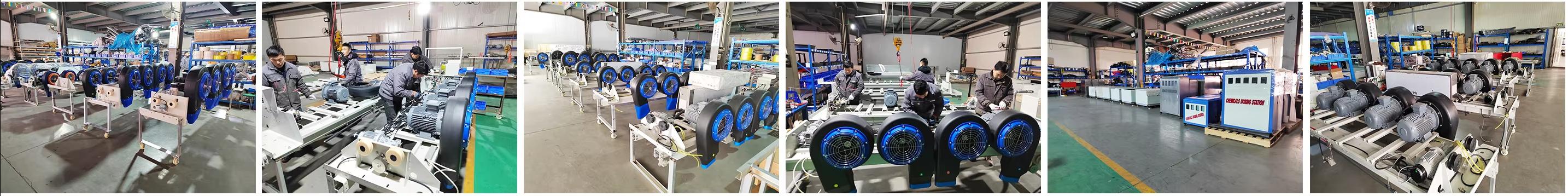

DR WASH Manufacturing Facility
DR WASH Manufacturing Facility
State-of-the-Art Production Line

Product Overview

DR WASH DR D04 elevates touchless car washing with 150-bar high-pressure cleaning capability and an 18.5 kW motor. Engineered for demanding environments where vehicles require deeper cleaning power, the D04 delivers exceptional wash quality on mud-caked SUVs, commercial vehicles, and fleet cars. The integrated intelligent liquid distribution system ensures optimal chemical usage while the embedded rapid air drying system completes the wash cycle efficiently and thoroughly.

24/7 Unmanned Operation
Smart Liquid Distribution
Rapid Air Drying System
Fault Self-Checking System
10" Touch Screen Control
Mobile Remote Control

Technical Parameters

ModelDR D04
Rated Power30 kW
Water Pressure150 bar
Blower Power5.5 kW × 4
Motor Power18.5 kW
Voltage220-415V / 63A
Cleaning Time4–6 minutes
Max Vehicle Size5.5 × 2.0 × 2.05 m
Installation Footprint7.0 × 3.5 × 3.2 m
Volume / Weight10.3 CBM / 2,200 kg
Car Length DetectionIncluded
Car Width Detection
Car Height Detection
Production Lead Time12 days
Warranty3 Years

Standard Functions

Chassis Cleaning
High-pressure underbody wash
Arm Foam
Pre-wash foam application
Dual Side Foam
Both side coverage
🌈
Colorful Foam
Visual appeal foam wash
💧
High-Pressure Flush
Powerful water jet cleaning
💎
Coating Water Wax
Protective wax finish
💨
Mobile Blow Dry
Moving air dryer system
🔊
Voice Guidance
Multi-language prompts
🖥
LED Display
Status & instruction screen
📱
Remote Control
Phone/PC monitoring
🔧
Tool Kit
Installation & maintenance

Installation Dimensions

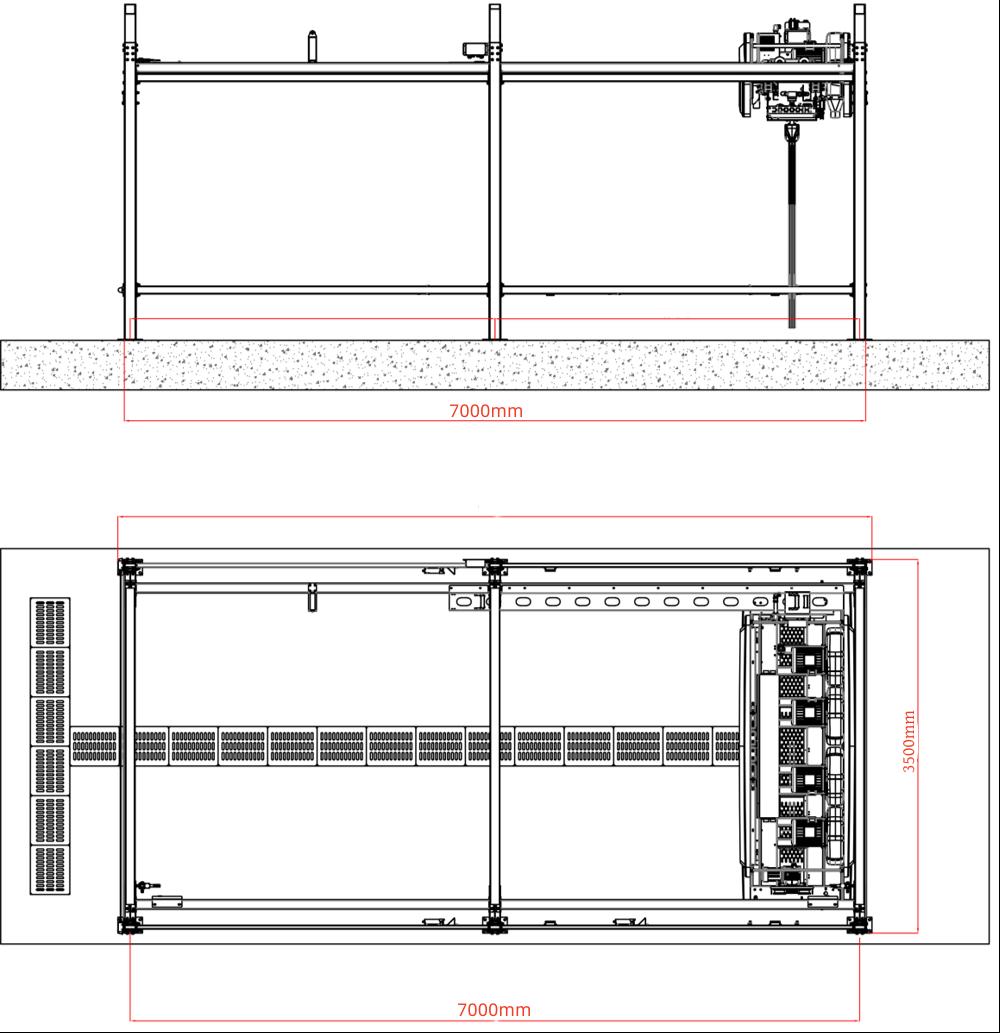

Dimension Drawing
Machine Size
7000 × 3500 × 3200 mm
Max Vehicle Size
5700 × 2300 × 2150 mm
Land Requirement
7500 × 3600 × 3500 mm
Drainage Channel
6500 × 400 × 300 mm / 3000 × 400 × 300 mm

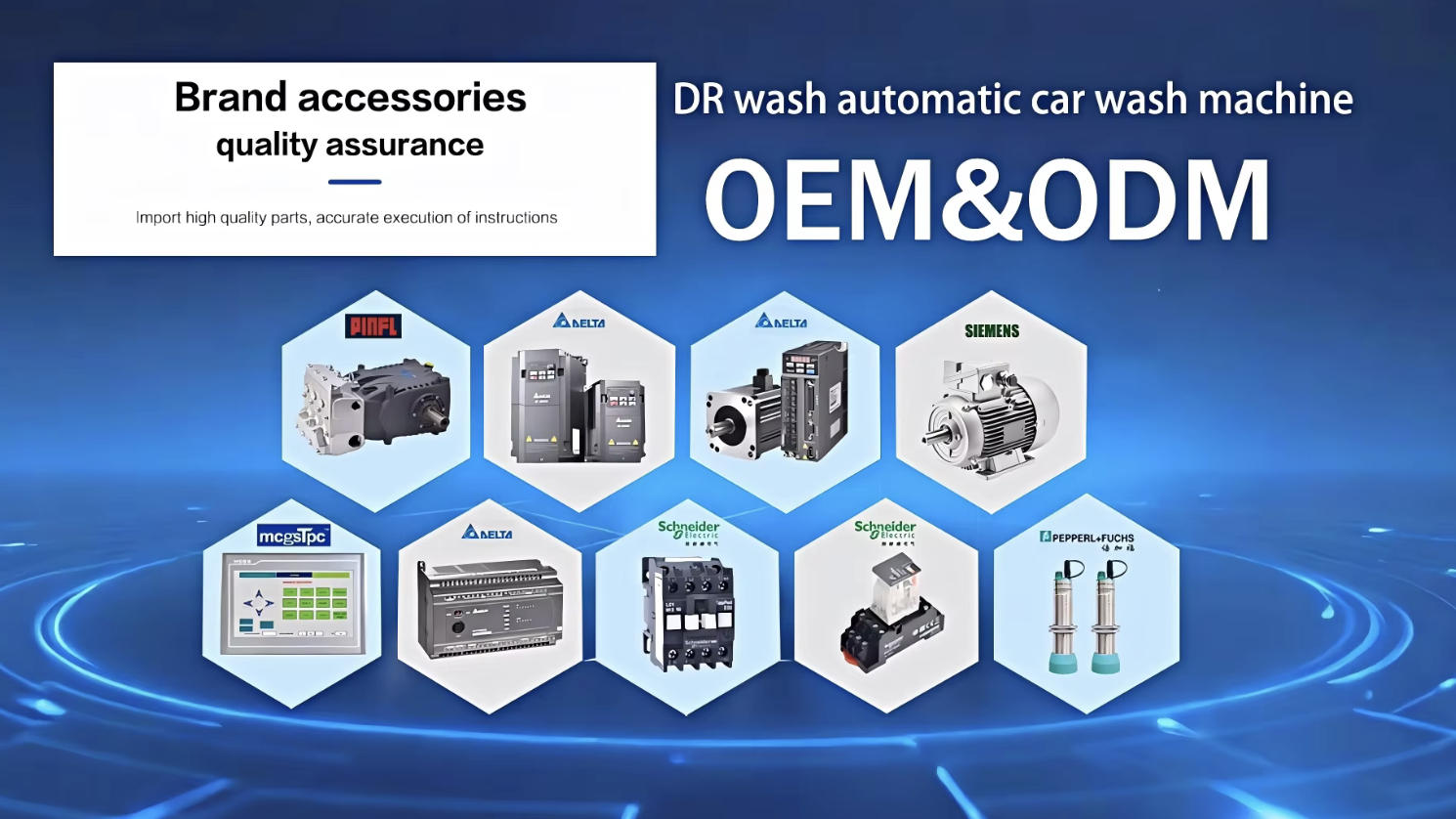

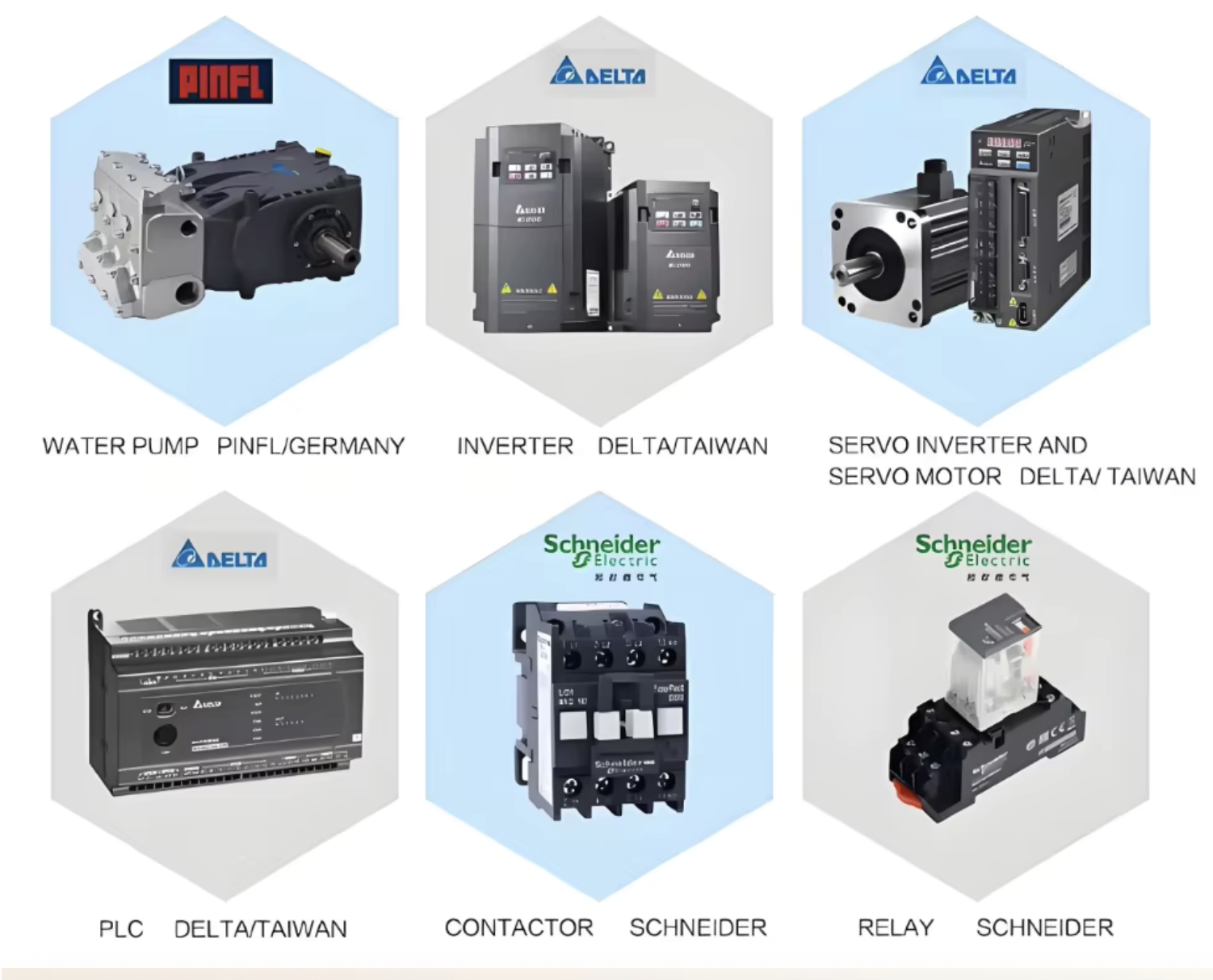

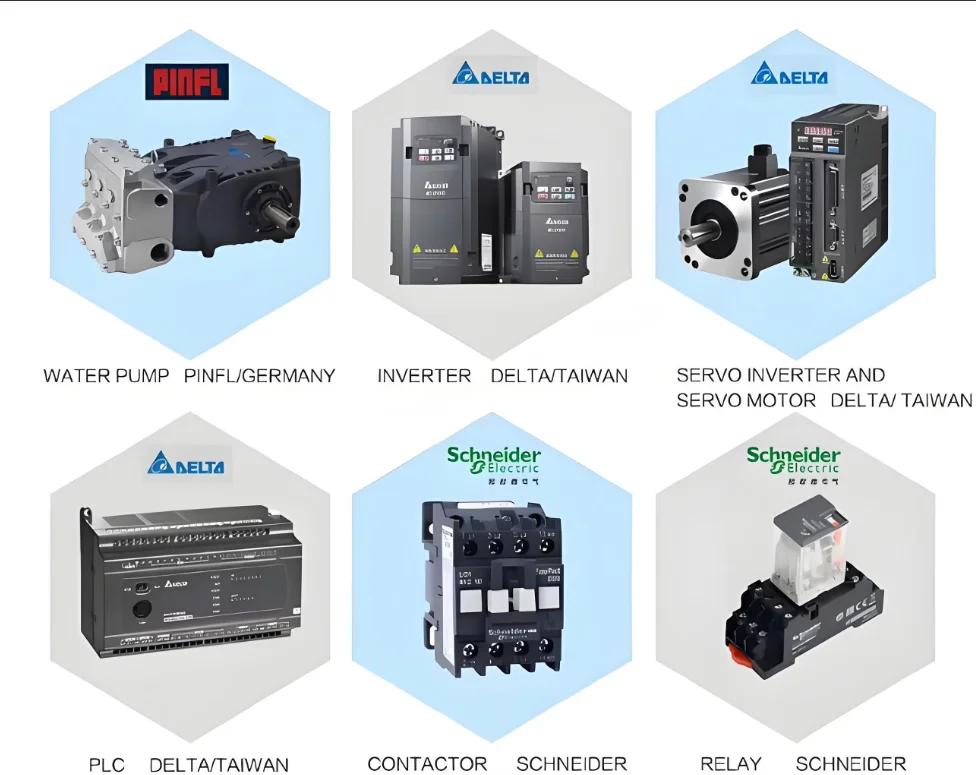

Key Components & Brands

World-class components from globally trusted manufacturers

Key Components
Component Brand Origin
PLC ControllerDeltaTaiwan
Ultrasonic SensorB+FGermany
Proximity SwitchCORONTaiwan
ReducerSITIItaly
Frequency ConverterDeltaTaiwan
Touch ScreenDeltaTaiwan
High-Pressure PumpPINFL-45Germany
BearingSKFSweden
Pneumatic ComponentsAirTacTaiwan

Packaging & Shipping

Shipping
Export-Ready Container Loading

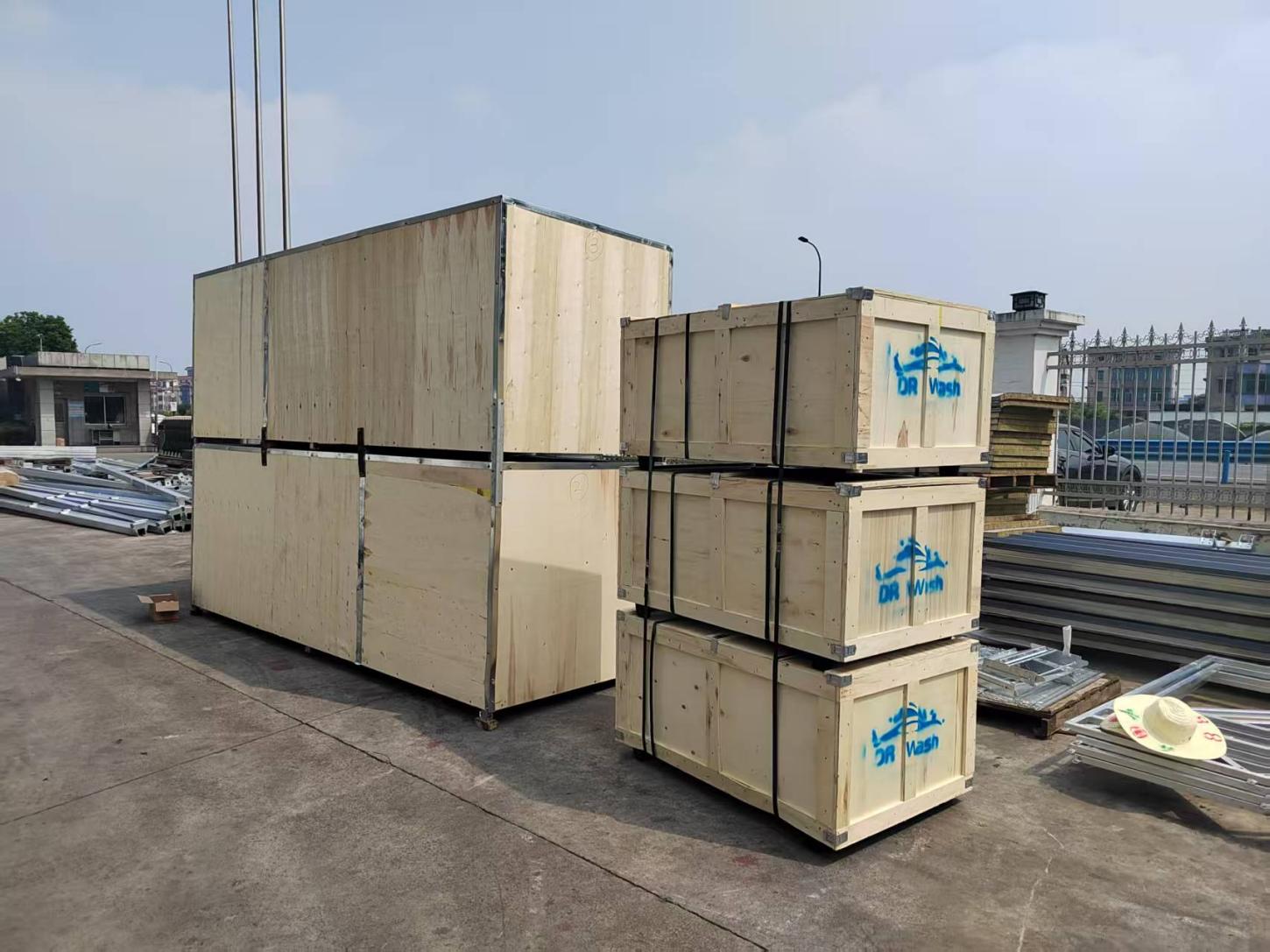

Packaging
Heavy-Duty Wooden Crate Packaging
Item Dimensions (m) Weight (kg) Volume (CBM)
Main Box3.68 × 1.32 × 1.301,3006.31
Water Pump Box1.30 × 0.83 × 0.602600.66
Rack Box3.45 × 0.50 × 0.503400.86
Guide Rail7.00 × 0.60 × 0.603952.50
Air Compressor0.60 × 0.60 × 0.40300.14
TOTAL2,325 kg10.47 CBM

International Shipping Standard: All machines are packed in fumigated wooden crates compliant with ISPM 15 international phytosanitary regulations. Every shipment is fully insured and tracked, guaranteeing 100% damage-free delivery to your destination port worldwide.

After-Sales Service

Comprehensive support throughout your ownership journey

📞 Pre-Sales

  • Free consultation & needs assessment
  • Free site planning & layout design
  • Customized solution proposals

🌎 On Sale

  • Free installation & operation training
  • Remote guidance within 1 hour
  • Video installation manual included

🛠 After-Sales

  • On-site solution within 5 business days
  • 3-year complete machine warranty
  • Lifetime technical support

Product Features

Intelligent unmanned system with self-service card payment function

Intelligent 360° technology

Intelligent chemical mixing system

Innovative suspension system with resistance-free guide rails

Unique embedded rapid drying system

Digital voice safety alarm system

Fault self-diagnosis system

One-key anti-freezing system

Products Description

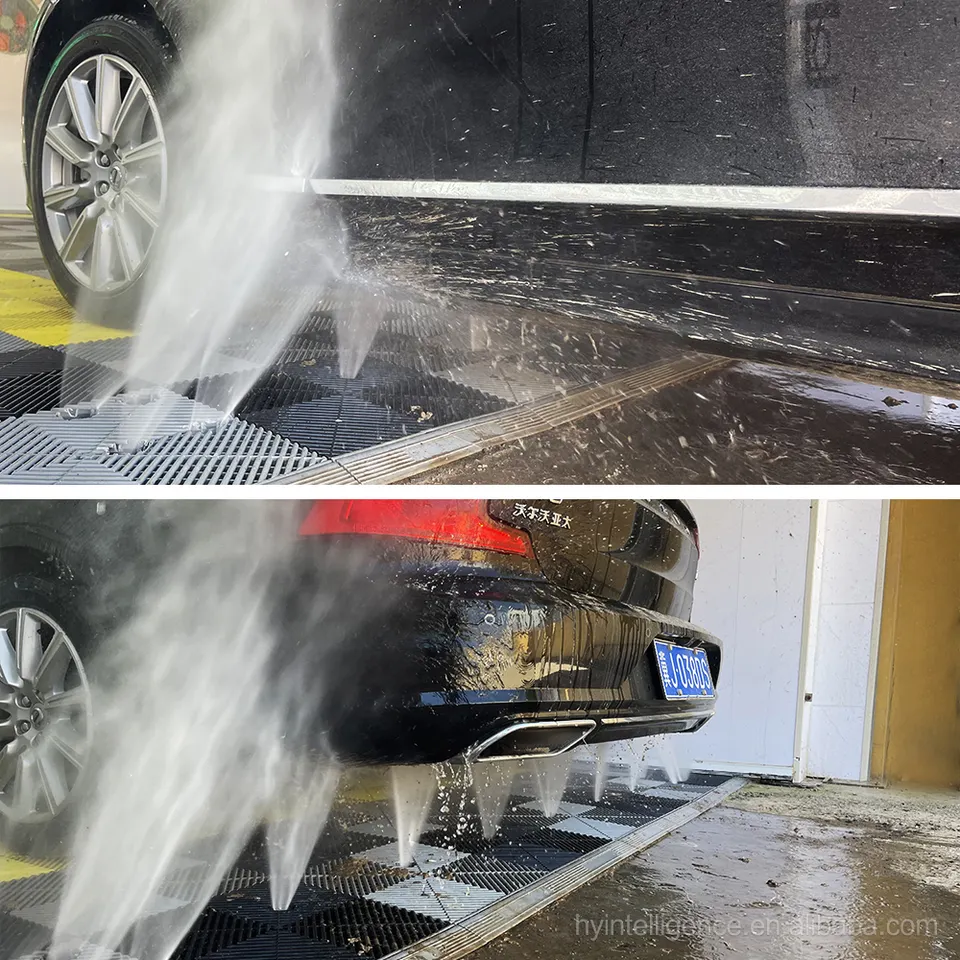

High-pressure pre-washing system

High-pressure pre-washing for chassis and under-wheel areas.
Equipped with a unique chassis and wheel hub flushing function, 100-150bar high-pressure water effectively removes dirt from the chassis, vehicle sides, and wheels.

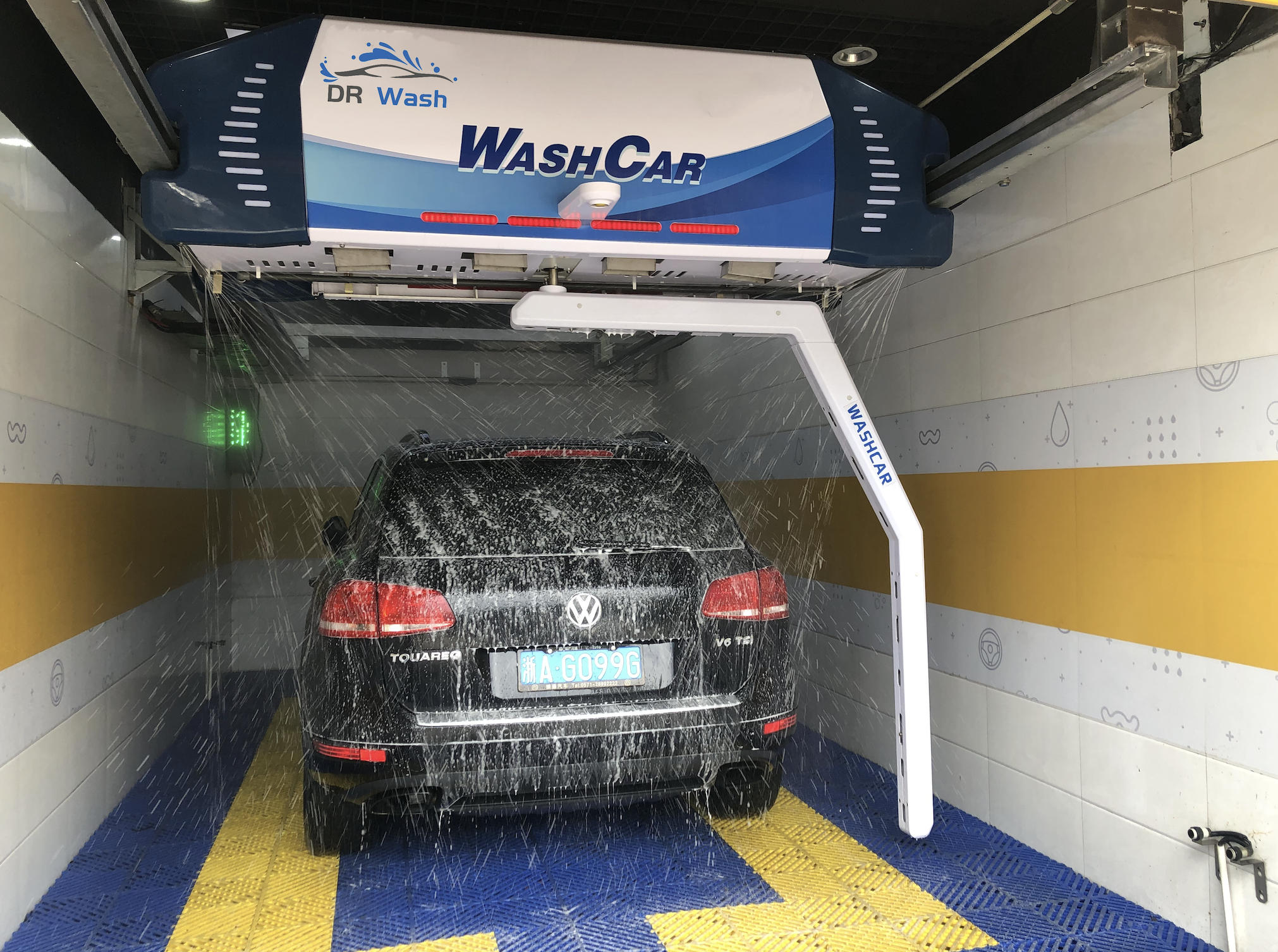

Intelligent 360° rotating arm

Intelligent 360° rotating arm with high-precision dosing technology for spraying various washing chemicals.
The shampoo ratio is adjustable. Car washing only requires 20-50ml of shampoo via the high-precision chemical mixing system.

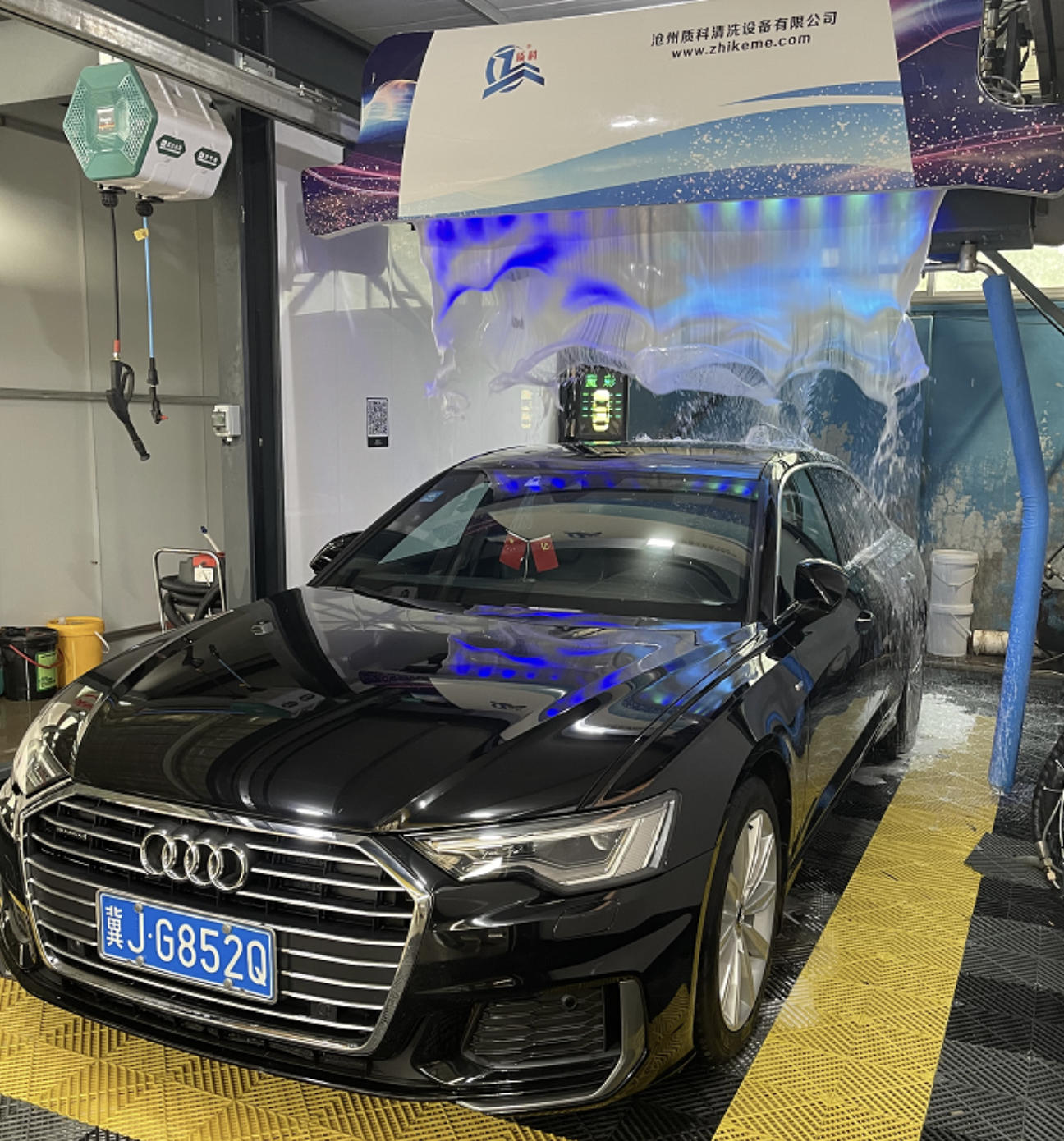

Magic Lava Color Foam

Magic Lava Color Foam
The thick foam allows components to fully contact dirt during cleaning and maintenance, improving decontamination efficiency while better protecting the car paint.

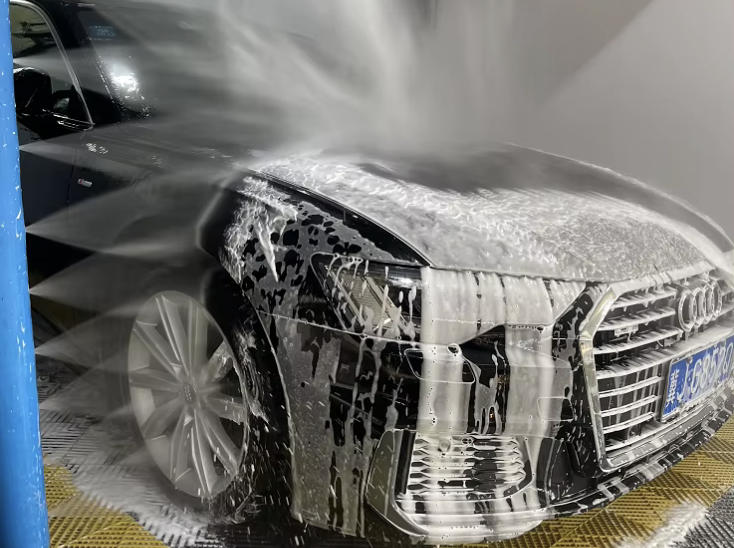

Intelligent Detection system

Intelligent Detection with High-pressure 360° Rotating Water Spray
Completes a 360° rotation within 28 seconds, automatically detecting vehicle length and width. High-pressure water (100-150 bar) easily removes dirt.

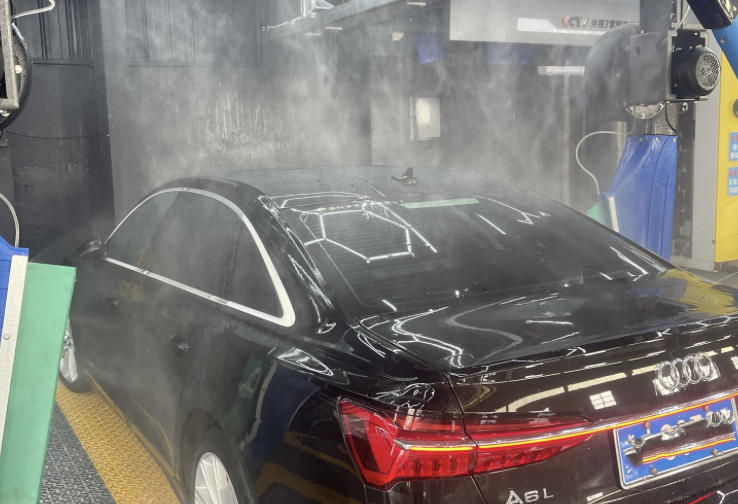

Soft Water with Crystal Wax Coating

Soft Water with Crystal Wax Coating
The soft water wax enables the magic crystal-coated color shampoo and wax to fully adhere to the body surface, forming a high-strength protective film for longer-lasting paint protection.

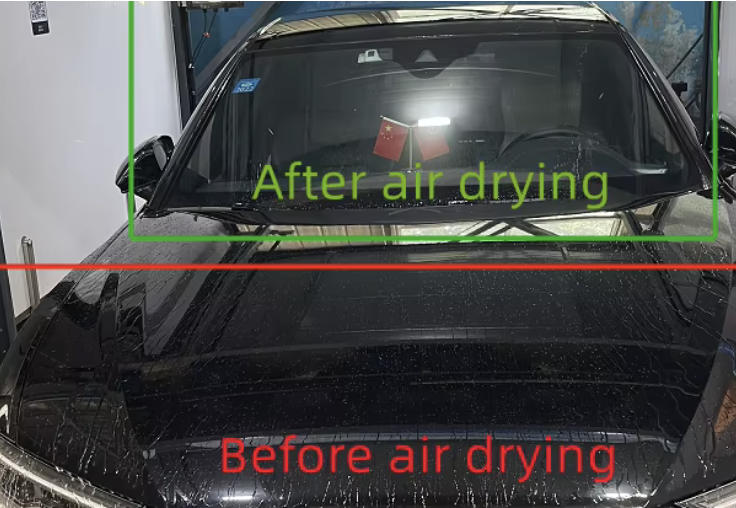

Embedded Quick-Drying System

Unique Embedded Quick-Drying System
Equipped with 4 built-in air dryers to generate strong high-speed airflow. In fact, high-speed airflow is the optimal drying solution.

The features of non-contact automatic car washers:

Non-contact automatic car washers are intelligent cleaning equipment that achieve full-vehicle cleaning through high-pressure water flow, foam spraying, and air-drying systems without physical contact with the vehicle body. Their core features center around "non-contact" technology, forming significant differences from traditional contact car washers in aspects such as vehicle paint protection, car washing efficiency, and automation level.

Basic Equipment Parameters

Project Description
Frame installation length 7000 mm (customizable)
Frame installation width 3500 mm (customizable)
Frame installation height 3200 mm (customizable)
Pump power and pressure 15-22 kW 100-150 bar
Vehicle washing water 100-150 L/vehicle
Foam consumption 20-40 mL/vehicle
Magic shampoo consumption 50-100 mL/vehicle
Coating wax consumption 30-40 mL/vehicle
Power consumption 0.7-1.2 kWh/vehicle
Cleaning speed 3-5 minutes/vehicle
Delivery time 10-15 days
Car wash model 1-4 model
Air switch 40A
Air dywer power 4KW*4 sets

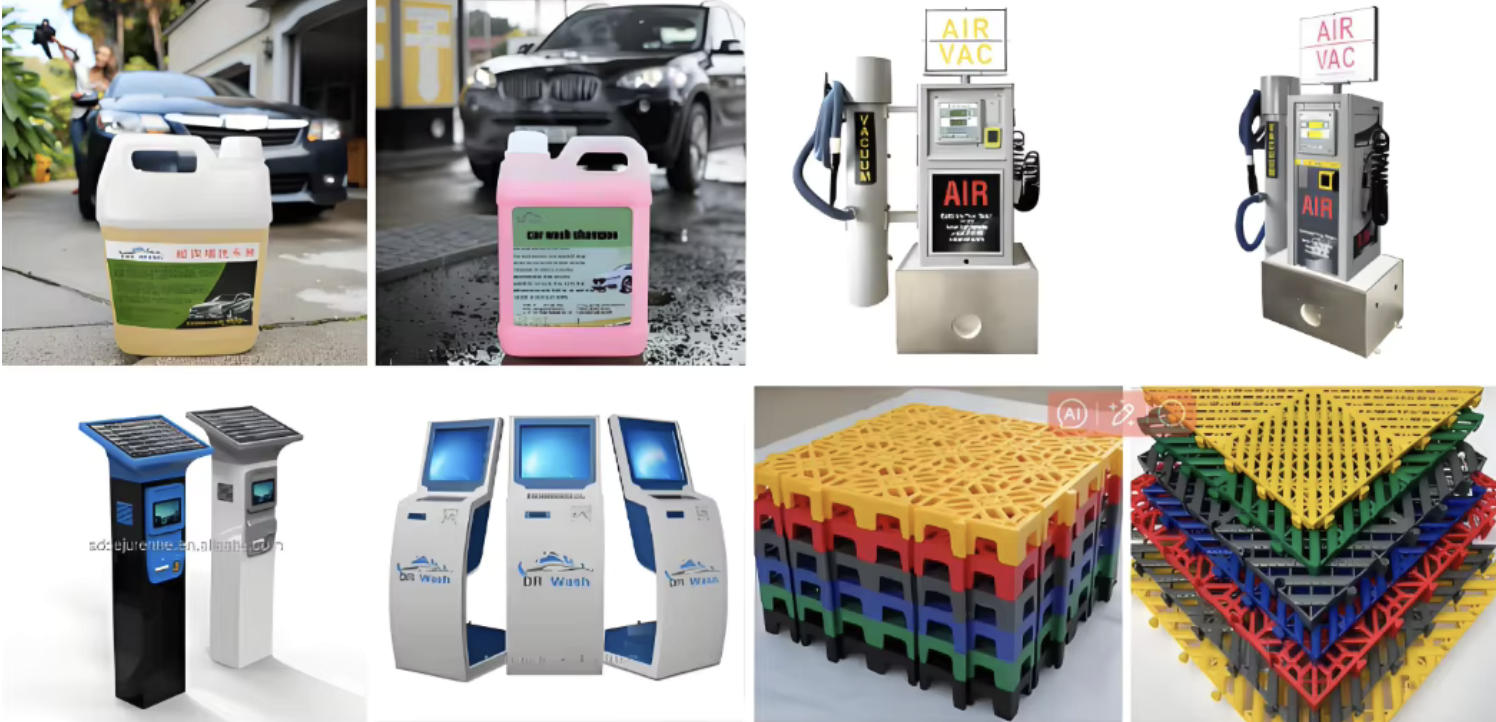

Product image Product image Product image Product image Product image Product image

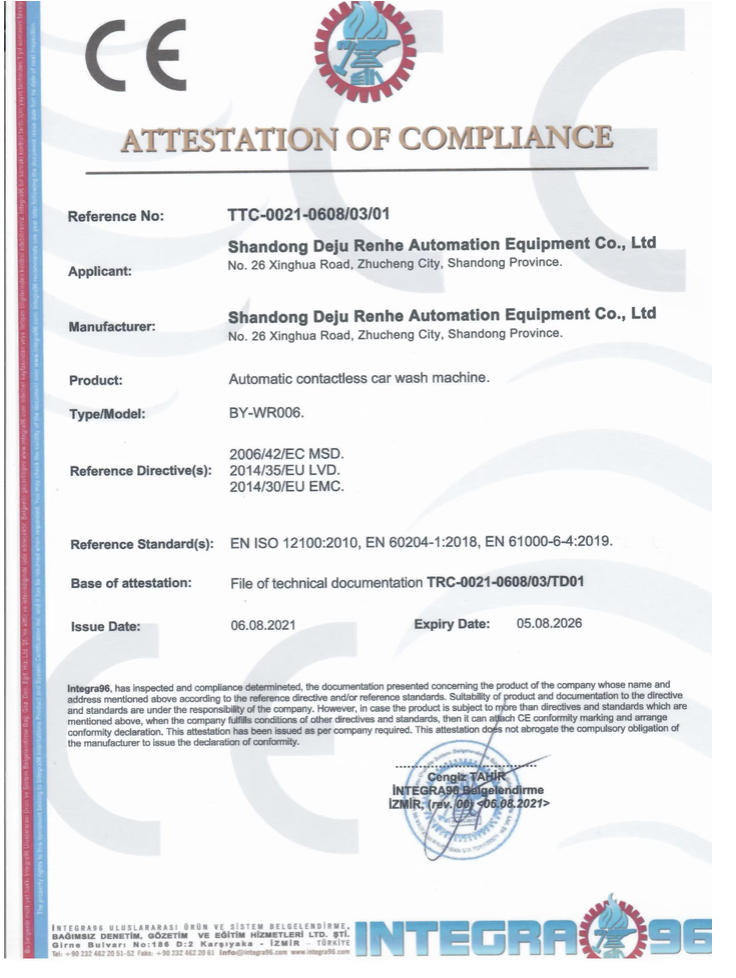

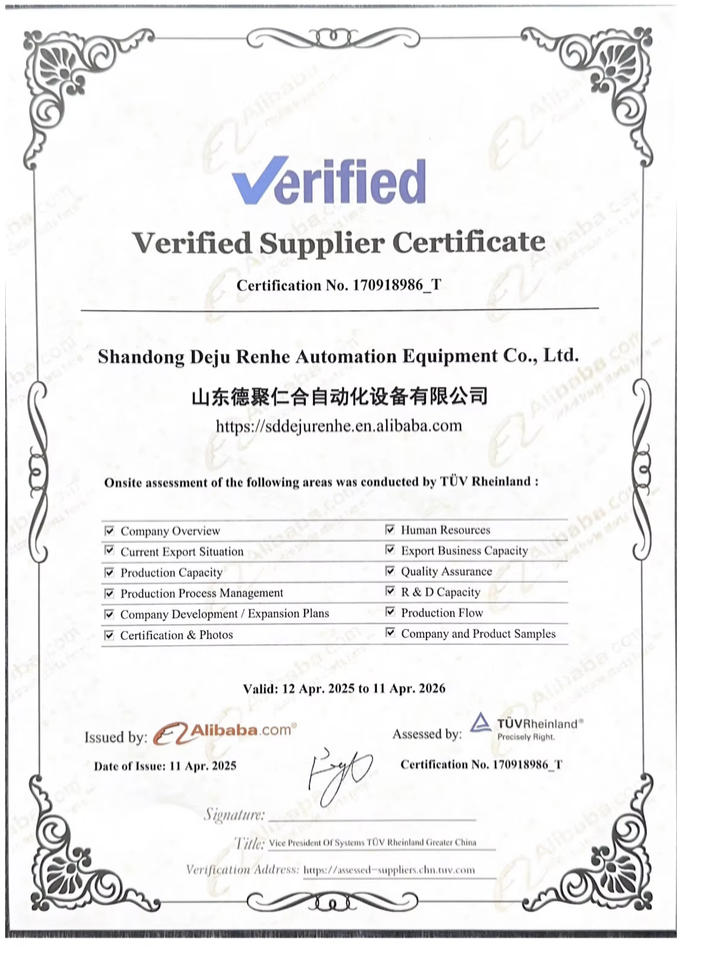

Accreditation System

Accreditation certificate
Accreditation certificate
Accreditation certificate
Accreditation certificate

One-Stop Solution

One-stop solution diagram Payment methods

More payment methods are negotiable

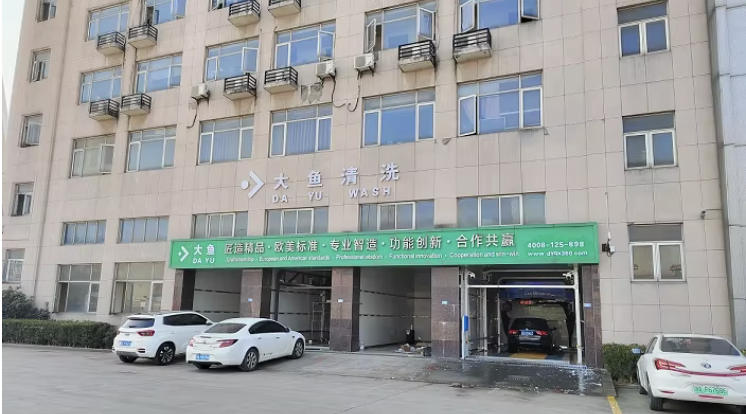

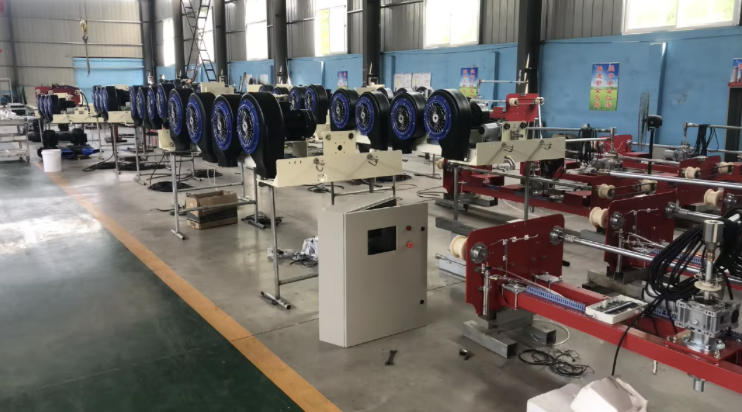

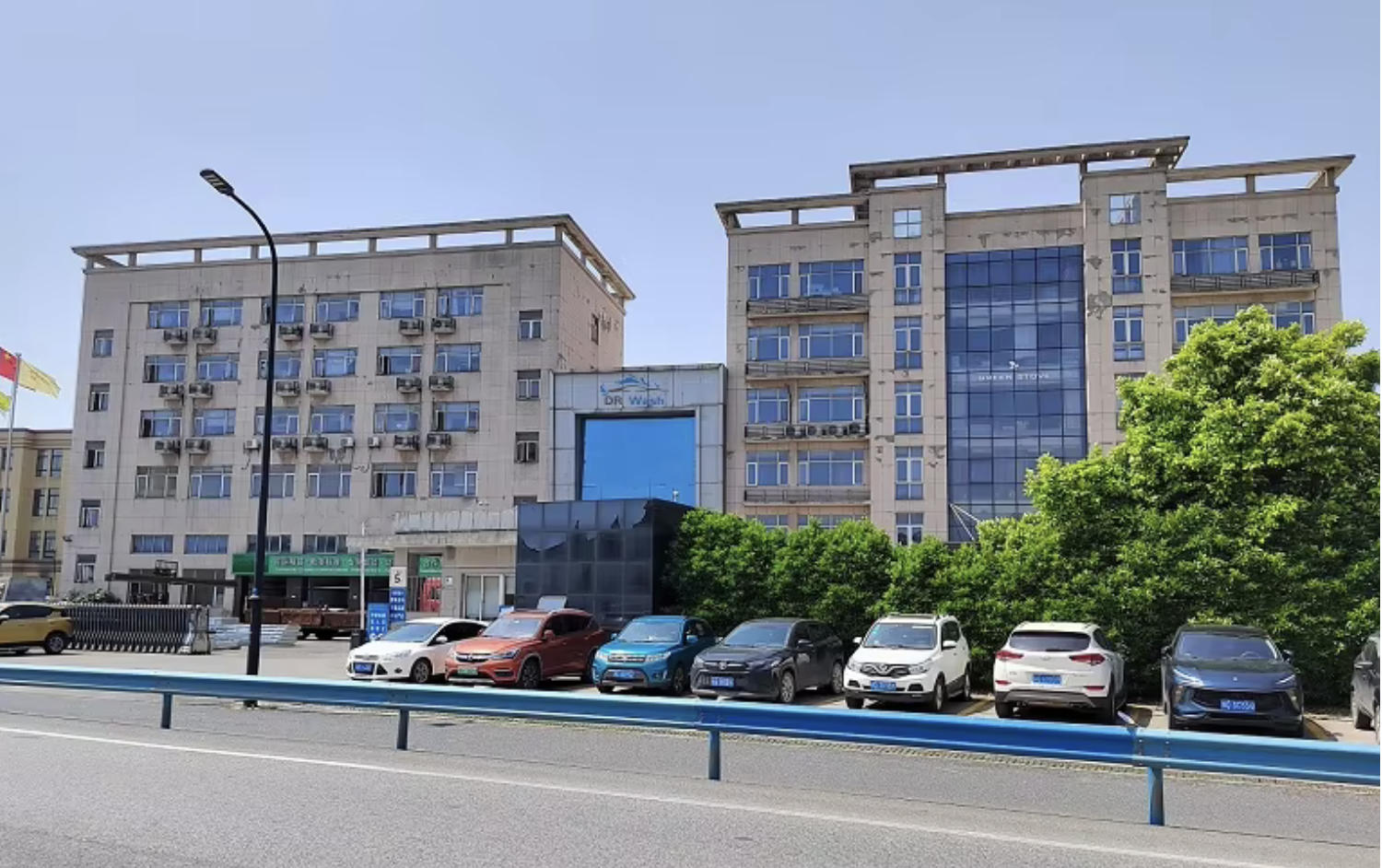

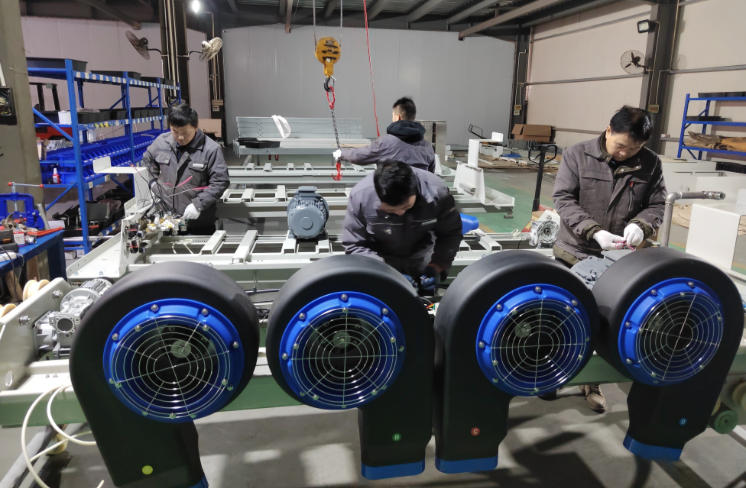

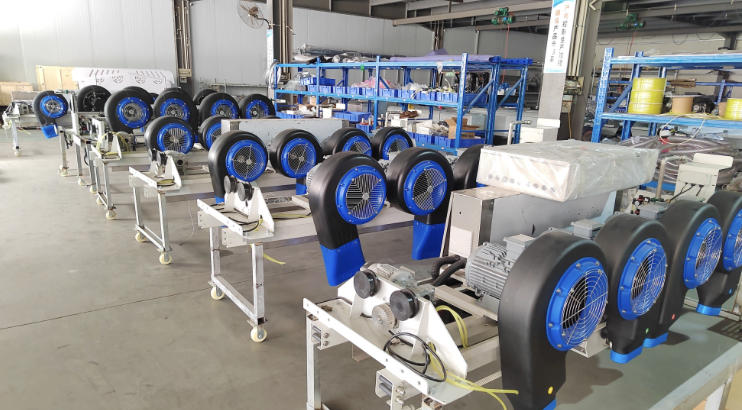

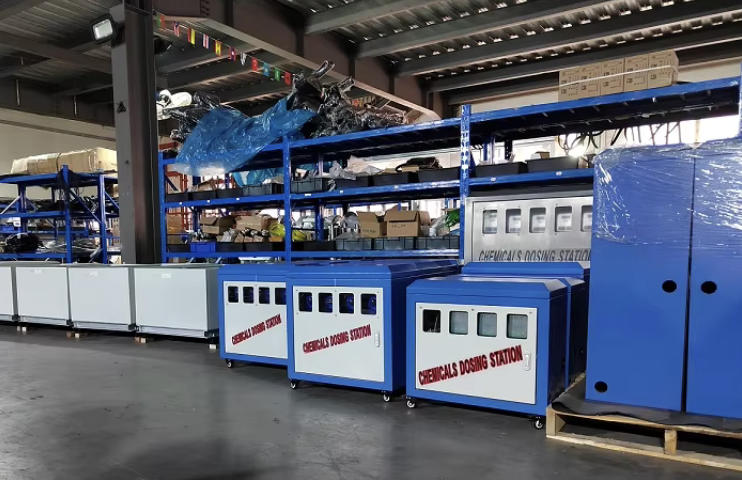

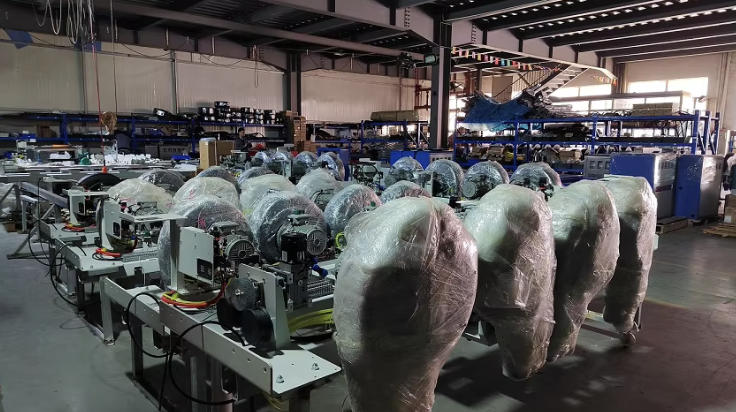

Factory Live Shooting

Factory image

Shandong Deju Renhe Automation Equipment Co., Ltd
Is a globally renowned manufacturer and supplier of car washing machines. As an industry leader, we leverage innovative concepts and cutting-edge technology to precisely meet customer needs.

Dr. Wash is committed to excellence in the car washing field, with a mission to provide humanized, technologically advanced, and reliably stable automatic car washing systems for the Gulf region. Our professional team will exceed customer expectations and build long-term partnerships with employees, dealers, and clients. Our car wash machines balance cost-effectiveness and high-profit potential. For example, the quick car wash solutions featuresafety, energy efficiency, and user-friendly operation, both enhancing profits and simplifying processes. Additionally, we offer premium services, technical support, and a complete range of spare parts, looking forward to cooperating with you.

Factory image
Factory image
Factory image
Factory image
Factory image
Factory image

Package and Delivery

Packaging and delivery
Packaging process
Packaging process
Packaging process
Packaging process
Delivery process
Delivery process

Customer Feedback

Customer feedback
Customer feedback
Customer feedback
Customer feedback
Customer feedback
Customer feedback
Customer feedback
Customer feedback

Why Choose Us

Q1: Are you a factory or trading company?

A: We are a factory.

Q2: How do you control your production quality?

A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before each shipment.

Q3: Can I have a visit to your company before placing an order?

A: Sure, welcome to visit BoYou AE. Our factories locates in Shandong province, our showroom is in Zhucheng,Shandong province.

Q4: What kind of support can I get if I am BoYou AE's agent?

A: Bottom price, free catalog and gift for marketing, on site training.

Q5: May I know the Lead time?

A: The lead time of our machine is 10 days.

Q6: What is your payment terms?

We accept Alibaba Trade Assurance, TT, LC, etc.

Q7: Can you provide the whole workshop automotive equipment?

A: Yes. we have 6 series contains nearly all automotive equipment.

Q8: What is the time to wash one car?

A: 3-5 minutes.(Adjustable)

Choose us for innovation, quality, and peace of mind—your success is our priority.
